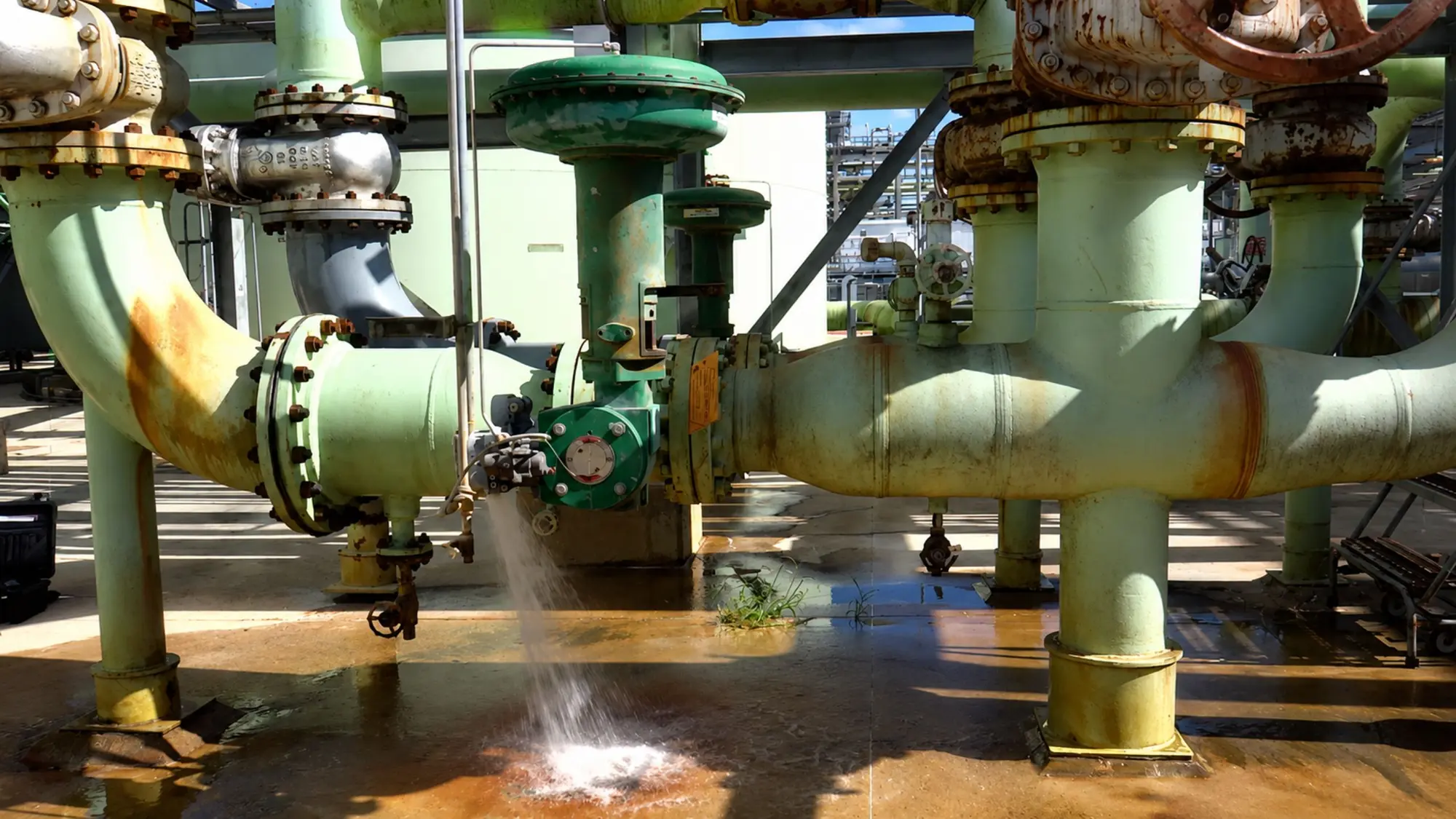

Cavitation is one of the most destructive things that can happen inside a control valve. It hollows out trim, pits valve bodies, and turns a routine throttling duty into a recurring maintenance headache. It is also one of the most predictable — the same pressure mechanics drive it every time, which means the same engineering principles can defend against it. Understanding why it happens is the first step to stopping it.
What cavitation actually is
As liquid accelerates through the restriction in a valve, its velocity rises and its local static pressure falls — the vena contracta is the point of lowest pressure just downstream of the throttling area. If that pressure drops below the fluid's vapor pressure at operating temperature, the liquid flashes locally into vapor and bubbles form. Further downstream, where the flow decelerates and pressure recovers above vapor pressure, those bubbles collapse violently, imploding against trim and body surfaces.
Each implosion is microscopic, but billions of them concentrate enormous, repeated energy on small areas of metal. The result is the characteristic gravel-like or hissing sound and the pitted, spongy erosion that engineers know all too well — surfaces that look as if they have been eaten away from the inside.
Where it shows up
Cavitation favors high pressure-drop service: pump recirculation and minimum-flow lines, let-down and pressure-reducing valves, boiler feedwater, and any application where a large differential is taken across a single valve. The higher the ratio of pressure drop to available pressure recovery, and the closer the upstream fluid sits to its vapor pressure, the greater the risk.
It is also a moving target. A valve that runs clean at design conditions can begin to cavitate as a pump's discharge pressure changes, as throughput drops and more of the system head is taken across the valve, or as fluid temperature rises and vapor pressure climbs. That is why diagnosing cavitation from the symptom alone — without the service conditions — so often leads to the wrong fix.
How to control it
The proven defenses are staging the pressure drop and managing velocity. Multi-stage, characterized anti-cavitation trim — such as Fisher™ Cavitrol™ designs — breaks the total differential into a series of smaller steps so the local pressure never falls far enough below vapor pressure for damaging bubbles to form, or forces any collapse to occur in the flow stream rather than against the metal. Correct sizing keeps the valve operating in its stable mid-travel range, and hardened trim materials buy margin where some cavitation is unavoidable.
Geometry matters as much as material. Tortuous-path and stacked-disk technologies, expanded outlets and careful seat design all aim at the same goal: keep velocities and local pressures inside safe limits across the real operating range, not just at the design point.
Protecting the fix at rebuild
None of this engineering survives a careless rebuild. Anti-cavitation trim only protects the valve when the genuine, correctly-specified components are installed to the original tolerances — the staging only works if every disk, cage and plug matches the design. A worn or substituted "will-fit" component can quietly defeat the very feature the plant paid for.
The practical discipline is to treat anti-cavitation valves as engineered systems: rebuild them with genuine OEM parts, confirm the trim specification against the service conditions, and keep the right spares on hand so a cavitation-protected valve never goes back into service compromised.
