ASCO™ Dust Collector Valves
A pulse valve is judged by what happens in a few milliseconds: how fast it opens, how much air it dumps, and how completely it closes again. Get that wrong and you pay for it twice — in compressed air and in filter life.
Sizing a valve? Estimate flow, pressure drop or Cv/Kv with our free calculator.
Open the Flow Calculator →Reverse-jet cleaning works by shock: a very short, very high blast of compressed air snaps the filter bag and releases the dust cake. The valve is the entire mechanism of that shock, so the specification that matters is not flow at steady state but peak pressure delivered in the first milliseconds. A slow valve wastes air on a pulse that never develops enough force, and the cake stays put.
That is why the line is built in layers. The 353 is the pulse valve itself, from 3/4" to 3", with integral or remote pilot and a Quick Mount Clamp that removes thread cutting from the install. The 110 pilot box and the 257 command it remotely, keeping the electricals off the collector and, with built-in heaters, working at −40 °C. And the 355B and 357 tank systems take it further: the valves live immersed inside the header tank, which shortens the air path and puts up to 18 valves on one manifold.
Select your valve
ASCO™ dust collector valves we supply
Narrow the line by port size, media and voltage — then open the series for its full technical data. Every specification below comes from the manufacturer’s published data.
353
353 (8353) Pulse Solenoid Valve
The core ASCO pulse valve: a solenoid pilot-operated diaphragm valve built for extremely fast pulsing in reverse-jet dust collectors, so filters clean better on less compressed air. Its patented Quick Mount Clamp connection removes thread cutting from the install.
- 3/4" – 3"
- Cv 10 – 140
- Global Ex approvals
357
357 Tank System
Steel immersion tank system with welded end covers for high-capacity filter cleaning, with integral operators and service connections for filter regulator, pressure gauge, safety valve and drain.
- Immersion valves
- IP65
- PED 2014/68/EU
110
110 Pilot Valve Box
Compact pilot box holding two to twelve direct-operated pilot valves, purpose-built to command Series 353 pulse valves remotely. Seats are integrated into the base plate, and it can carry heating elements for cold ambients.
- 2 – 12 stations
- To −40 °C
- IP65 · ATEX 2-22
257
257 Pilot Solenoid Valves
General-purpose and panel-mount pilot valves used to command large dust-collector pulse valves. Direct acting, normally closed, compact brass or plastic bodies, and zero minimum operating pressure.
- Zero min. pressure
- Cv 0.1 – 0.5
- UL · CSA
355B
355B Tank System
High-flow header tank built from an aluminium profile with end covers, carrying fully immersed pulse valves — up to 18 per tank, in several pitch distances, with quick-mount, push-in, hose or threaded blow-pipe connections.
- Up to 18 valves
- CR diaphragm
- PED 2014/68/EU
No series match that combination.
Clear a filter — or tell us the duty and our application engineers will pick the valve.
Request a Quote →Series 353

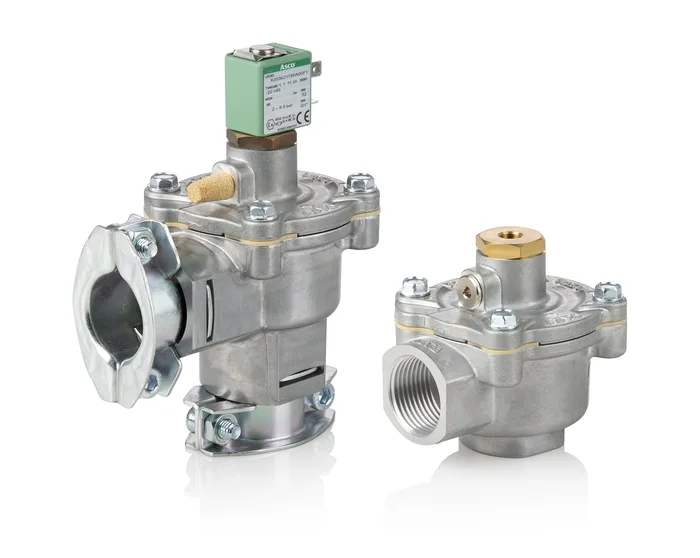

353 (8353) Pulse Solenoid Valve
The core ASCO pulse valve: a solenoid pilot-operated diaphragm valve built for extremely fast pulsing in reverse-jet dust collectors, so filters clean better on less compressed air. Its patented Quick Mount Clamp connection removes thread cutting from the install.
Technical data
- Port size
- 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3"
- Port type
- NPTF · G-thread · Quick Mount Clamp connection
- Function
- 2/2 normally closed
- Operation
- Solenoid integral pilot · air-operated (remote/external pilot) constructions
- Body material
- Aluminum
- Operating pressure
- Min 5 psi · max 125 psi
- Temperature
- −40 °F to 140 °F · high-temperature version to +140 °C · low-temperature version to −40 °C
- Flow factor (Cv)
- 10 – 20 · 35 – 57 · 60 – 140
- Response
- Extremely fast open/close response
- Electrical
- Integral pilot with moulded epoxy coils · explosion-proof options NEMA, Ex d, Ex mb, Ex e mb
- Enclosure
- Types 1, 2, 3, 3R, 3S, 4, 4X, 6, 6P, 7, 9
- Approvals
- Class I Div 1 and 2 · Class II Div 1 and 2 · UL · CSA · ATEX Zone 1-21 and 2-22 · IECEx · NEPSI · CUTR · KOSHA
- Constructions
- Single-stage and dual-stage diaphragm · integral or external pilot · stainless steel · immersion (3" and 3.5") · Power Pulse
- Mounting
- Any position
Series 357
357 Tank System
Steel immersion tank system with welded end covers for high-capacity filter cleaning, with integral operators and service connections for filter regulator, pressure gauge, safety valve and drain.
Technical data
- Port size
- 1 1/2"
- Port type
- G ISO 228/1 BSPP
- Construction
- Steel tank with welded end covers · immersion valves with integral operators
- Diaphragms
- Reinforced, wear-resistant
- Electrical
- Integral operators with epoxy-moulded class F coils
- Enclosure
- IP65 per IEC 60529
- Approvals
- CE per Pressure Equipment Directive 2014/68/EU
- Options
- Hose and threaded blow-pipe connections · several pitch distances · service connections for filter regulator, pressure gauge, safety valve and automatic or manual drain
- Voltages
- 24/48 V DC · 24/48/115/230 V AC
Series 110

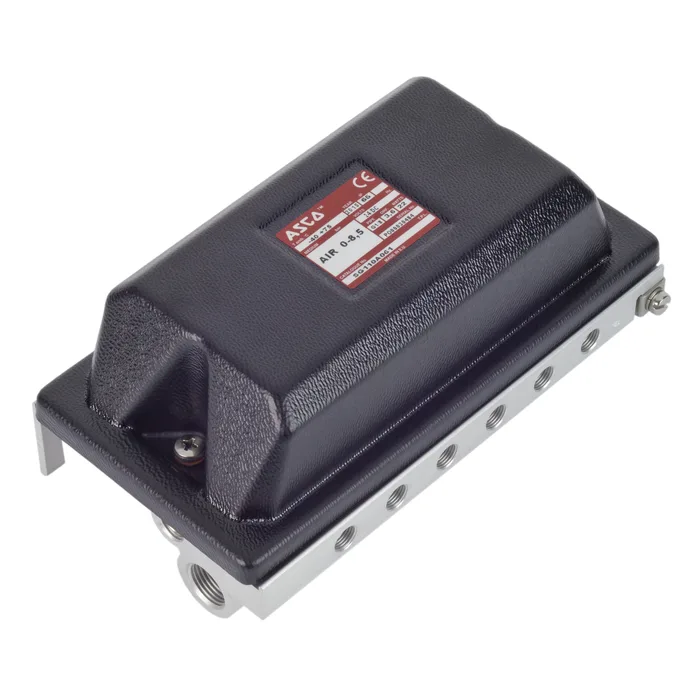

110 Pilot Valve Box
Compact pilot box holding two to twelve direct-operated pilot valves, purpose-built to command Series 353 pulse valves remotely. Seats are integrated into the base plate, and it can carry heating elements for cold ambients.
Technical data
- Port size
- 1/8" · G ISO 228/1 BSPP
- Function
- 2/2 normally closed
- Operation
- Solenoid, direct operated
- Body material
- Aluminium
- Stations
- 2–6 or 7–12 valves per box
- Operating pressure
- 0 – 8.5 bar
- Minimum ambient temperature
- −40 °C
- Flow
- 5.8 l/min
- Exhaust
- Common exhaust connection for one or two G 3/8" silencers
- Enclosure
- IP65
- Approvals
- ATEX Zone 2-22 · IP65 · meets applicable EC directives
- Options
- Built-in heating elements for low ambient temperatures
Series 257

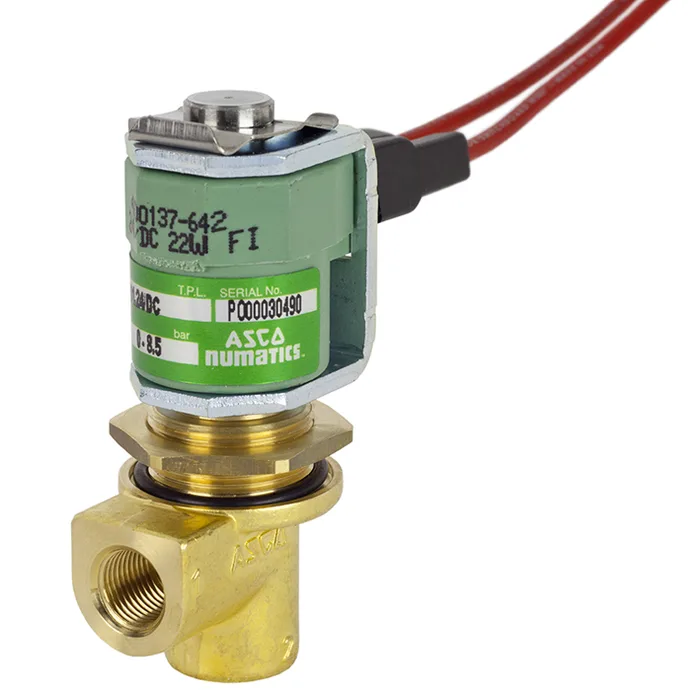

257 Pilot Solenoid Valves
General-purpose and panel-mount pilot valves used to command large dust-collector pulse valves. Direct acting, normally closed, compact brass or plastic bodies, and zero minimum operating pressure.
Technical data
- Port size
- 1/8" · NPTF
- Function
- 2/2 normally closed
- Operation
- Solenoid, direct acting — zero minimum pressure required
- Body material
- Brass (plastic-body versions available)
- Operating pressure
- Vacuum to 150 psig
- Flow factor (Cv)
- 0.1 – 0.5
- Electrical connection
- Brass body: screw or leaded terminals · plastic body: spade terminals
- Enclosure
- Type 1
- Approvals
- CSA · UL
- Mounting
- Individual installation or watertight panel mounting · threaded exhaust port for optional muffler on brass bodies
Series 355B

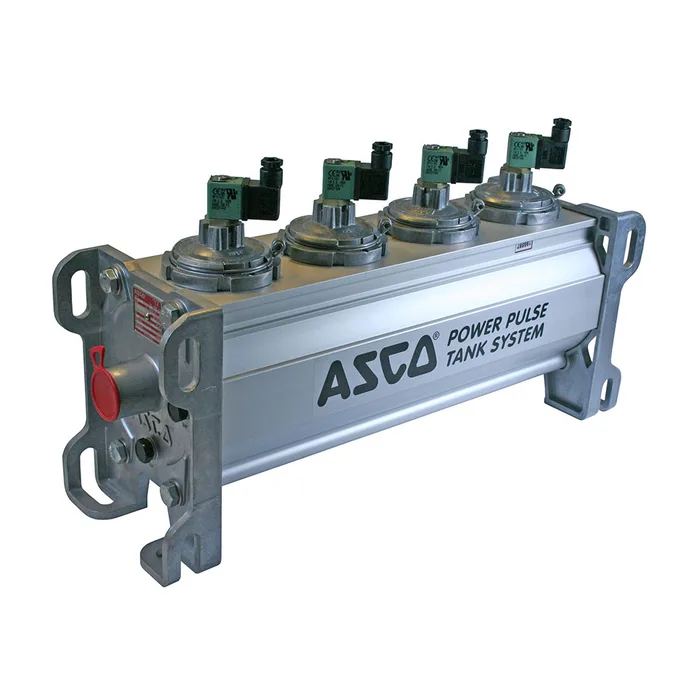

355B Tank System
High-flow header tank built from an aluminium profile with end covers, carrying fully immersed pulse valves — up to 18 per tank, in several pitch distances, with quick-mount, push-in, hose or threaded blow-pipe connections.
Technical data
- Construction
- Aluminium profile and end covers with fully immersed pulse valves
- Capacity
- Up to 18 valves per tank · several pitch-distance combinations
- Diaphragm
- Polychloroprene (CR)
- Blow-pipe connections
- Quick-mount · push-in · hose · male- or female-threaded
- Approvals
- CE per Pressure Equipment Directive 2014/68/EU
Need an ASCO™ dust collector valve?
Send us the catalog number, the port size and the service — we confirm the series, the coil and the body material, and quote it from our Orlando, FL warehouse.
