ASCO™ Solenoid Valve Accessories
The last-mile parts that decide whether the valve works: the coil that survives a Zone 1 area, the strainer that keeps the seat clean, the connector that does not let water in — and the rebuild kit that puts a valve back in service instead of replacing it.
Sizing a valve? Estimate flow, pressure drop or Cv/Kv with our free calculator.
Open the Flow Calculator →Most solenoid valve failures in the field are not the valve. They are a particle on the seat, a coil that burned because the enclosure was wrong for the area, or water that got in through a connector. That is why the accessory line matters more than its price suggests: a strainer upstream is cheaper than a shutdown, and the right operator is what makes the same valve legal in a classified area.
The line splits three ways. Operators and coils — the RedHat II families in NEMA types 1 through 9, plus the Ex ones: LPKF in aluminium and WSLPKF in stainless (both flame-proof Ex d, IP66/IP67, NEMA 4/4X) and WBLP in increased safety and encapsulation (Ex e mb), which carries a thermal fuse that drives the valve to its safe position if the coil overheats. Line protection — brass, stainless and plastic strainers, check valves and adjustable flow controls. Electrical — DIN and spade connectors with LED and surge-suppression options, and the timers that cycle a condensate drain on their own.
Select your valve
ASCO™ solenoid valve accessories we supply
Narrow the line by port size, media and voltage — then open the series for its full technical data. Every specification below comes from the manufacturer’s published data.
LPKF
LPKF Solenoid Operators (Ex d)
Flame-proof aluminium solenoid operator for potentially explosive atmospheres, with screw-terminal coil and a 1/2" NPT threaded entry that takes a wide range of cable glands.
- Ex d · ATEX Zone 1-21
- IP66 / IP67 · NEMA 4/4X
- Aluminium
WSLPKF
WSLPKF Solenoid Operators (Ex d), stainless
The stainless-steel version of the flame-proof operator — same Ex d protection and IP66/IP67, for corrosive and washdown environments where aluminium will not survive.
- Ex d · ATEX Zone 1-21
- IP66 / IP67 · NEMA 4/4X
- Stainless steel
WBLP
WBLP Solenoid Operators (Ex e mb)
Increased-safety and encapsulated protection, with a thermal fuse in the winding: if sustained over-voltage or a jammed core overheats the coil, it de-energizes the valve and drives it to its safe position.
- Ex e mb · ATEX
- IP67
- Thermal fuse in coil
2WSNF
2WSNF Operator with Integrated Surge Protection
Solenoid operator with a surge protection device built in, for the 327, 551 and 553 series. Rated IP66/IP67 and certified ATEX, IECEx and CCC, from −40 °C to +60 °C.
- Integrated SPD
- ATEX · IECEx · CCC
- −40 to +60 °C
329
329 3-Way Solenoid Operators
Three-way RedHat II epoxy-encapsulated operator for air, inert gas, water and light oil. Lets equipment builders integrate ASCO coils and operators into their own manifolds and custom assemblies.
- 3/2 NC & NO
- Types 1 – 9
- CSA
200
200 Solenoid Operators
RedHat II epoxy-encapsulated operator — the same one fitted to ASCO general-service valves — in four standard wattages, AC or DC, mountable in any position.
- Brass
- Types 1 – 9
- CSA
016
016 Solenoid Operators
RedHat II epoxy-encapsulated operator rated at 6.1 W and 9.1 W — the only accessory in the line for which Emerson publishes actual wattage figures.
- 6.1 W / 9.1 W
- Types 1 – 9
- CSA
017
017 (8017) Solenoid Operators
RedHat Type 1 epoxy-encapsulated operator in four standard wattages, AC or DC, with explosion-proof and rain-tight options.
- RedHat Type 1
- Ex-proof option
- CSA
003
003 (8003) Manual Operators
Manual operator with the RedHat II epoxy solenoid, in stainless steel — the override that lets an operator move the valve when there is no power.
- Stainless steel
- 2/2 & 3/2
- CSA
600
600 Brass Pipeline Strainers
Forged-brass strainer with a stainless straining element. Fit one upstream of every solenoid valve: most valve failures in the field are a particle on the seat, not a broken valve.
- 1/8" – 3/4"
- Steam to 250 psi
- UL-recognized
601
601 Pipeline Strainers
Strainer with a blow-off connection for self-cleaning — you purge it without breaking the line — in forged brass, stainless steel or acetal, rated for steam to 250 psi and 406 °F.
- Blow-off connection
- Steam 250 psi / 406 °F
- Brass · SS · acetal
604
604 Plastic Pipeline Strainers
Plastic-body strainer with a stainless element and straight-through, large-area flow. The element comes out and back-flushes clean.
- 1/4"
- Air & water
- Back-flushable
V012
V012 High-Flow Check Valves
In-line check valve whose disc seats before reverse flow starts — so the line never takes the fluid shock of a slamming check. Brass or stainless.
- 1/4" – 3/4"
- Seats before reverse flow
- Brass / stainless
V022
V022 Flow Control Valves
Adjustable flow control with free flow one way and metered flow the other: a tapered brass stem, scribed graduations so you can repeat a setting, and a locking device in the knob so it stays where you left it.
- 1/4" – 3/4"
- Locking knob
- 316L option
908
908 Electronic Proportional Control Unit
Turns an analog command into the coil current of a proportional valve by PWM, holding the current steady regardless of coil temperature or supply variation. Adjustable up/down ramp and an LED display in the connector itself.
- PWM control
- Adjustable ramp
- LED in connector
DIN
DIN Electrical Connectors
Spade connectors for standard three-pin moulded coils, in glass-fibre reinforced polyamide, IP65 with their gaskets. The 18 mm standard model has a removable lid so you can check the wiring without unplugging.
- IP65
- LED & VDR options
- Max 240 V
881
881 Electrical Spade Connectors
Spade connectors in sizes 22 and 30 for three-pin moulded coils, in three versions: standard rotatable, rotatable with LED and electrical protection built in, and non-rotatable with a moulded 3-conductor cable.
- Sizes 22 & 30
- −40 to +125 °C (silicone)
- LED version

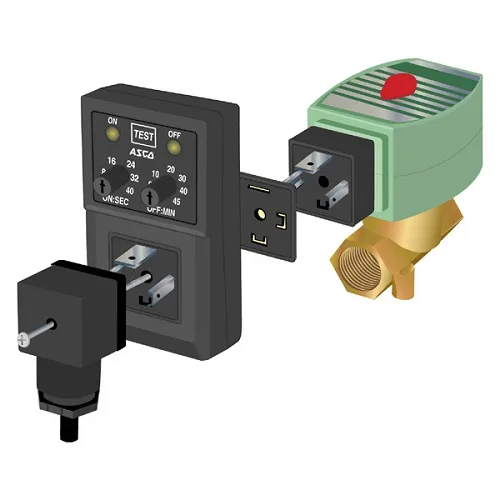

Timers
Solenoid Valve Timers
Solid-state adjustable timers that cycle an ASCO solenoid valve automatically. The classic job: draining condensate from a compressed-air system without anyone remembering to do it. Available plain, with a DIN connector kit, or with a power cord.
- On 2 – 40 s
- Off 30 s – 45 min
- Type 4
Nothing matches that combination.
Clear a filter — or tell us the duty and our application engineers will pick the valve.
Request a Quote →

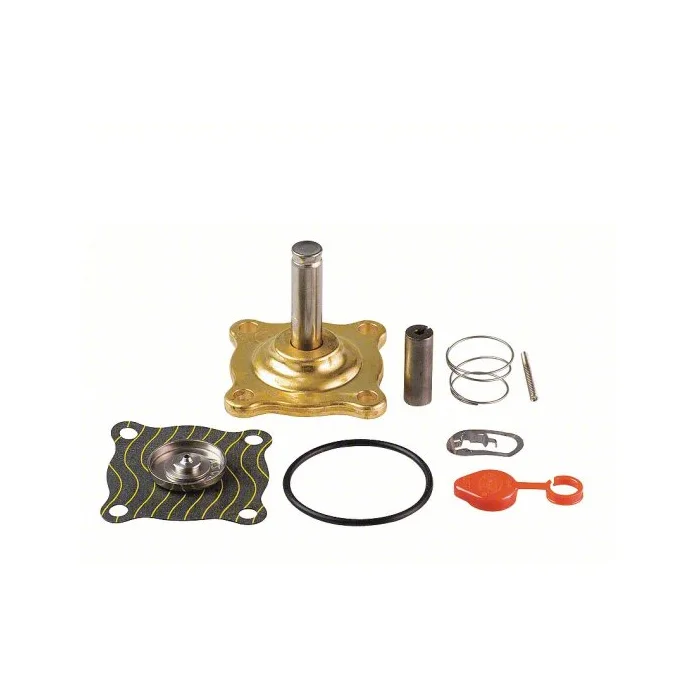

Rebuild kits
Rebuild kits — quoted by valve number
A rebuild kit brings a solenoid valve back to service: core assembly and plunger, spring, diaphragm, O-rings, seals and the retaining hardware — the parts that actually wear. Rebuilding is normally a fraction of the cost of a new valve, and it keeps the installed base and its approvals untouched.
ASCO™ kits do not have a catalog of their own. Each kit is identified by the valve it rebuilds and by its elastomer — NBR, PTFE or FPM — so there is no list to browse: the kit is derived from the valve. Send us the number and we identify it.
To quote it we need one of these
- ✓ Catalog number of the valve (e.g. 8210G094)
- ✓ Series and model (e.g. Series 210, 3/4")
- ✓ Serial number on the nameplate
- ✓ Elastomer, if you know it (NBR, PTFE, FPM)
Series LPKF

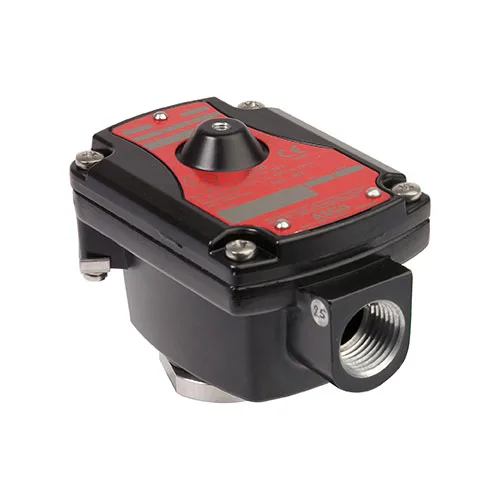

LPKF Solenoid Operators (Ex d)
Flame-proof aluminium solenoid operator for potentially explosive atmospheres, with screw-terminal coil and a 1/2" NPT threaded entry that takes a wide range of cable glands.
Technical data
- Enclosure material
- Flame-proof aluminium
- Cable entry
- 1/2" NPT threaded entry hole
- Ingress protection
- IP66 / IP67 — NEMA 4/4X
- Protection type
- Ex d
- Area classification
- ATEX Zone 1-21
- Standards
- ATEX Directive 2014/34/EU via IEC and EN 60079-0, 60079-1 and 60079-31 · IEC 60529
- Coil
- Screw terminal
- Compatibility
- Can be supplied with a variety of valve models

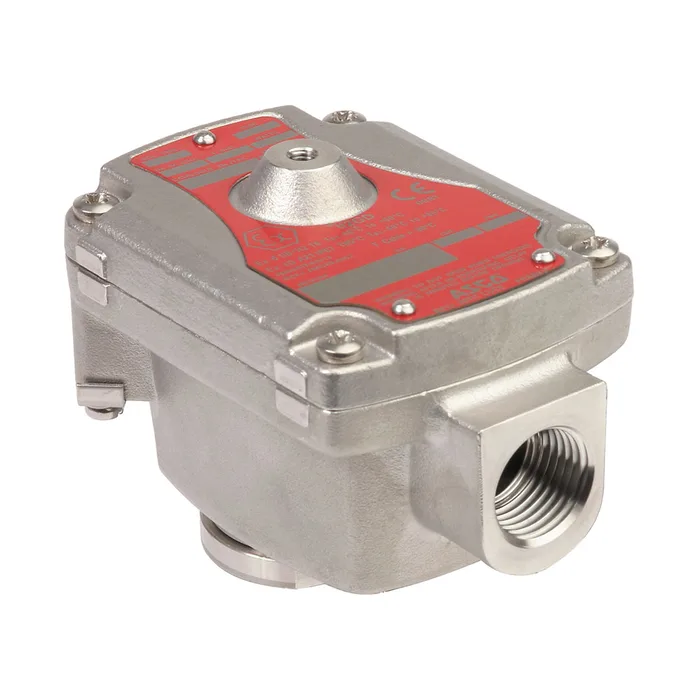

Series WSLPKF
WSLPKF Solenoid Operators (Ex d), stainless
The stainless-steel version of the flame-proof operator — same Ex d protection and IP66/IP67, for corrosive and washdown environments where aluminium will not survive.
Technical data
- Enclosure material
- Flame-proof stainless steel
- Cable entry
- 1/2" NPT threaded entry hole
- Ingress protection
- IP66 / IP67 — NEMA 4/4X
- Protection type
- Ex d
- Area classification
- ATEX Zone 1-21
- Standards
- ATEX Directive 2014/34/EU via IEC and EN 60079-0, 60079-1 and 60079-31 · IEC 60529
- Coil
- Screw terminal
Series WBLP
WBLP Solenoid Operators (Ex e mb)
Increased-safety and encapsulated protection, with a thermal fuse in the winding: if sustained over-voltage or a jammed core overheats the coil, it de-energizes the valve and drives it to its safe position.
Technical data
- Protection type
- Ex e mb — increased safety and encapsulation
- Ingress protection
- IP67
- Safety feature
- Thermal fuse (AC/DC) de-energizes the valve to its safe position on coil over-temperature
- Surge suppression
- Peak voltage suppression standard on DC executions
- Cable
- Integral strain relief for 7 – 8.5 mm O.D. cable
- Standards
- ATEX Directive 2014/34/EU · IEC 60529
Series 2WSNF

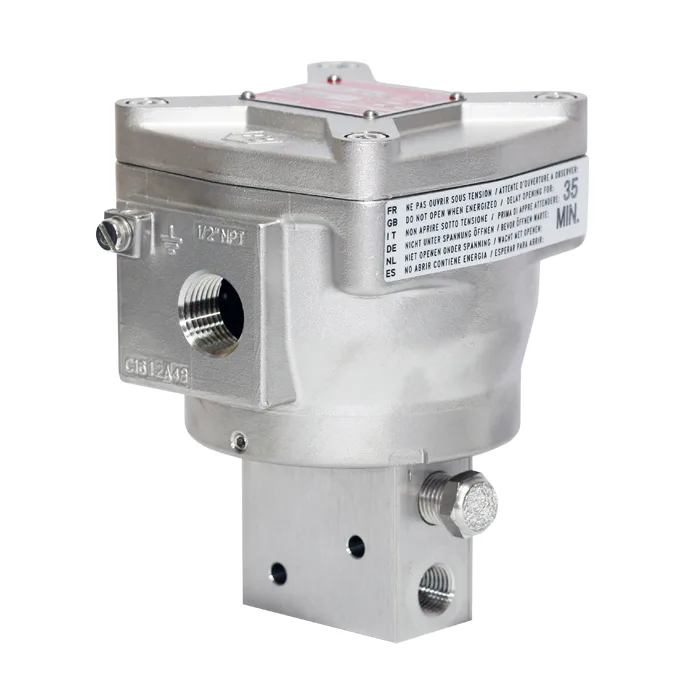

2WSNF Operator with Integrated Surge Protection
Solenoid operator with a surge protection device built in, for the 327, 551 and 553 series. Rated IP66/IP67 and certified ATEX, IECEx and CCC, from −40 °C to +60 °C.
Technical data
- Feature
- Integrated surge protection device (SPD)
- Compatibility
- Series 327, 551 and 553
- Ingress protection
- IP66 / IP67
- Ambient temperature
- −40 °C to +60 °C
- Approvals
- ATEX · IECEx · CCC

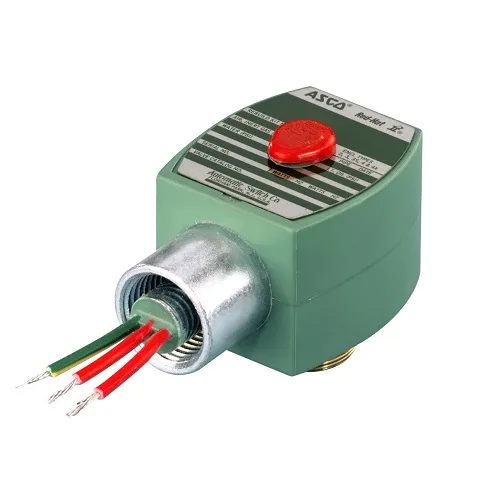

Series 329
329 3-Way Solenoid Operators
Three-way RedHat II epoxy-encapsulated operator for air, inert gas, water and light oil. Lets equipment builders integrate ASCO coils and operators into their own manifolds and custom assemblies.
Technical data
- Function
- 3/2 normally closed · 3/2 normally open
- Standard enclosure
- RedHat II watertight, Types 1, 2, 3, 3S, 4, 4X
- Optional enclosure
- Explosion-proof and watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, 9
- Ambient temperature
- 32 – 125 °F (AC) · 32 – 104 °F (DC)
- Approvals
- CSA · NEMA types as listed
- Option
- Inserted seat available
- Voltages
- 6/12/24/120/240 V DC · 24/48/110/115/120/208/220/240/440/480 V AC

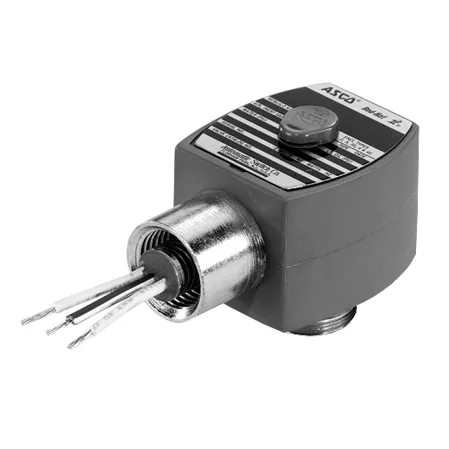

Series 200
200 Solenoid Operators
RedHat II epoxy-encapsulated operator — the same one fitted to ASCO general-service valves — in four standard wattages, AC or DC, mountable in any position.
Technical data
- Function
- 2/2 normally closed
- Body material
- Brass
- Standard enclosure
- RedHat II watertight, Types 1, 2, 3, 3S, 4, 4X
- Optional enclosure
- RedHat II explosion-proof and watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, 9
- Ambient temperature
- 32 – 125 °F (AC) · 32 – 104 °F (DC)
- Approvals
- CSA · NEMA Types 1, 2, 3, 3R, 3S, 4, 4X, 6, 6P, 7, 9
- Mounting
- Any position

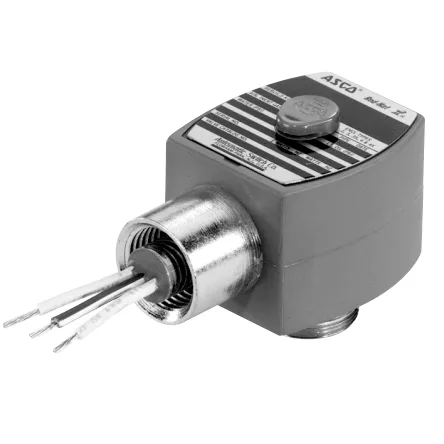

Series 016
016 Solenoid Operators
RedHat II epoxy-encapsulated operator rated at 6.1 W and 9.1 W — the only accessory in the line for which Emerson publishes actual wattage figures.
Technical data
- Power
- 6.1 W and 9.1 W
- Standard enclosure
- RedHat II watertight, Types 1, 2, 3, 3S, 4, 4X
- Optional enclosure
- Explosion-proof and watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, 9
- Ambient temperature
- 32 – 125 °F (AC) · 32 – 104 °F (DC)
- Frequency
- 50 Hz · 60 Hz · 50/60 Hz
- Approvals
- CSA · NEMA types as listed
Series 017
017 (8017) Solenoid Operators
RedHat Type 1 epoxy-encapsulated operator in four standard wattages, AC or DC, with explosion-proof and rain-tight options.
Technical data
- Standard enclosure
- RedHat Type 1
- Optional enclosure
- Explosion-proof and rain-tight, Types 3, 7, 9
- Ambient temperature
- 32 – 125 °F (AC) · 32 – 104 °F (DC)
- Approvals
- CSA · NEMA types as listed
- Mounting
- Any position
Series 003
003 (8003) Manual Operators
Manual operator with the RedHat II epoxy solenoid, in stainless steel — the override that lets an operator move the valve when there is no power.
Technical data
- Function
- 2/2 normally closed · 3/2 normally closed
- Body material
- Stainless steel
- Standard enclosure
- RedHat II watertight, Types 1, 2, 3, 3S, 4, 4X
- Optional enclosure
- Explosion-proof and watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, 9
- Ambient temperature
- 32 – 125 °F (AC) · 32 – 104 °F (DC)
- Approvals
- CSA · NEMA types as listed
- Mounting
- Any position

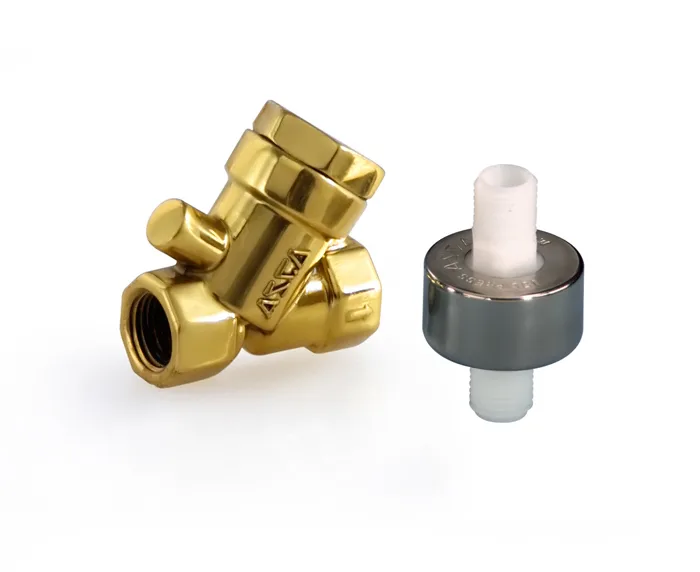

Series 600
600 Brass Pipeline Strainers
Forged-brass strainer with a stainless straining element. Fit one upstream of every solenoid valve: most valve failures in the field are a particle on the seat, not a broken valve.
Technical data
- Port size
- 1/8", 1/4", 3/8", 1/2", 3/4"
- Body material
- Forged brass
- Straining element
- Stainless steel
- Steam service
- Up to 250 psi maximum pressure
- Approvals
- UL-recognized component
Series 601

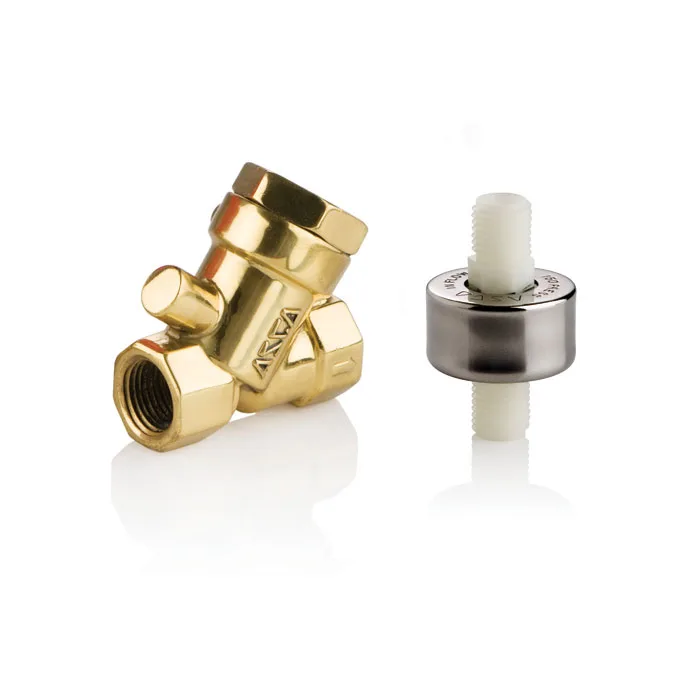

601 Pipeline Strainers
Strainer with a blow-off connection for self-cleaning — you purge it without breaking the line — in forged brass, stainless steel or acetal, rated for steam to 250 psi and 406 °F.
Technical data
- Body materials
- Forged brass · stainless steel · plastic (acetal)
- Steam service
- Up to 250 psi maximum pressure
- Maximum temperature
- 406 °F
- Self-cleaning
- Blow-off pipe connection
Series 604

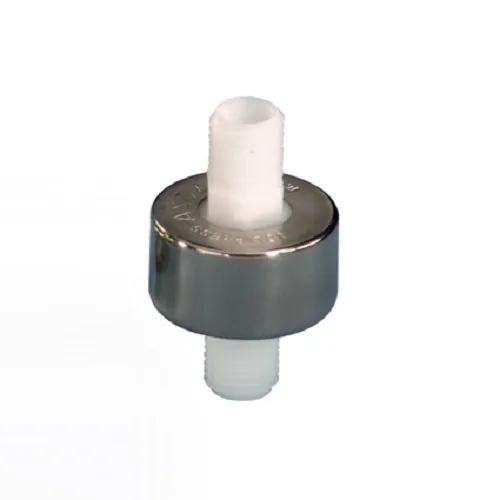

604 Plastic Pipeline Strainers
Plastic-body strainer with a stainless element and straight-through, large-area flow. The element comes out and back-flushes clean.
Technical data
- Port size
- 1/4"
- Body material
- Plastic
- Straining element
- Stainless steel — removable and back-flushable
- Flow
- Straight-through with large-area orifice
- Suitable for
- Air and water

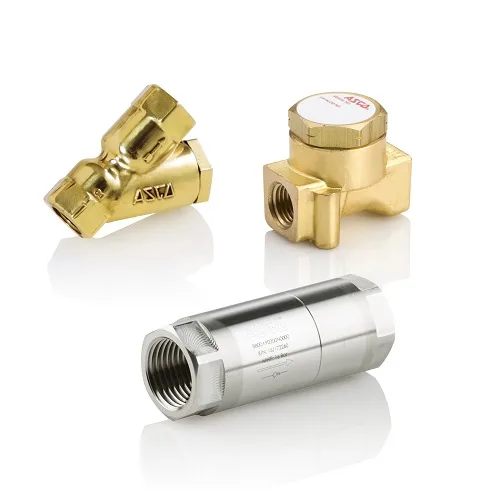

Series V012
V012 High-Flow Check Valves
In-line check valve whose disc seats before reverse flow starts — so the line never takes the fluid shock of a slamming check. Brass or stainless.
Technical data
- Port size
- 1/4", 3/8", 1/2", 3/4"
- Body material
- Brass · stainless steel
- Mounting
- In-line
- Key behaviour
- Disc seats before reverse flow, avoiding fluid shock on reverse pressure differential
- Ambient temperature
- 32 – 125 °F (0 – 52 °C)
- Operating environment
- Corrosive · indoor · outdoor · hazardous · washdown
Series V022

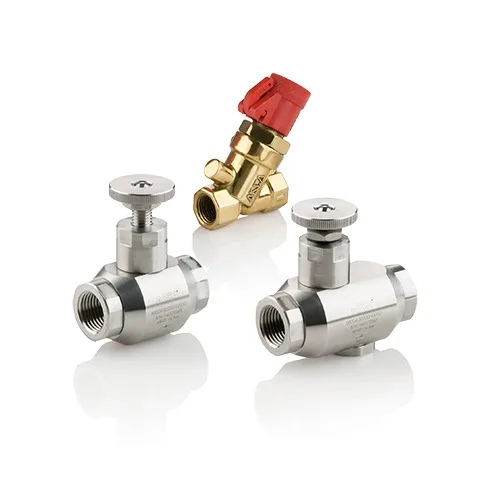

V022 Flow Control Valves
Adjustable flow control with free flow one way and metered flow the other: a tapered brass stem, scribed graduations so you can repeat a setting, and a locking device in the knob so it stays where you left it.
Technical data
- Port size
- 1/4", 3/8", 1/2", 3/4"
- Stem
- Tapered brass, controls flow through the cross-hole in the disc
- Setting repeatability
- Scribed graduations indicate stem position · locking device in the adjusting knob
- Stainless option
- 316L constructions available with integrated check valve
- Mounting
- Any position
- Operating environment
- Corrosive · indoor · outdoor · hazardous · washdown
Series 908

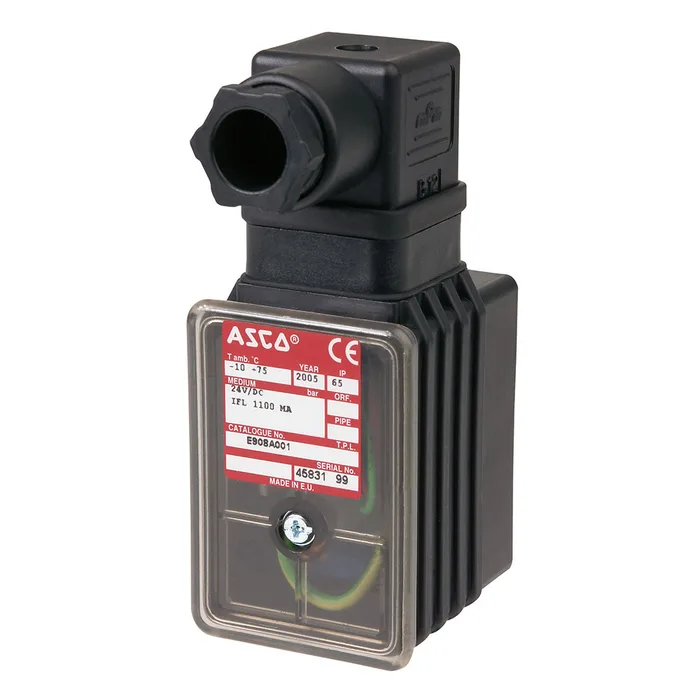

908 Electronic Proportional Control Unit
Turns an analog command into the coil current of a proportional valve by PWM, holding the current steady regardless of coil temperature or supply variation. Adjustable up/down ramp and an LED display in the connector itself.
Technical data
- Housing
- Standard housing per DIN EN 175301-803, Form A
- Control
- PWM — output coil current independent of coil resistance (temperature) and supply voltage variation
- Ramp
- Adjustable up/down ramp control
- Display
- LED display integrated in the connector
- Parameter setting
- Via PC interface and programming adapter, or optionally via switches in the connector
Series DIN

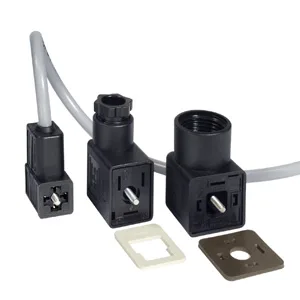

DIN Electrical Connectors
Spade connectors for standard three-pin moulded coils, in glass-fibre reinforced polyamide, IP65 with their gaskets. The 18 mm standard model has a removable lid so you can check the wiring without unplugging.
Technical data
- Material
- Glass fibre-reinforced polyamide housing and lid
- Ingress protection
- IP65 · Type 4
- Maximum voltage
- 240 V
- LED option
- Solid-state diode indicates power at the connector
- VDR option
- Varistor absorbs coil self-inductance and protects the coil or controller against supply over-voltage or peaks
Series 881
881 Electrical Spade Connectors
Spade connectors in sizes 22 and 30 for three-pin moulded coils, in three versions: standard rotatable, rotatable with LED and electrical protection built in, and non-rotatable with a moulded 3-conductor cable.
Technical data
- Sizes
- Connector sizes 22 and 30
- Operating temperature
- −40 to +80 °C · −40 to +125 °C with silicone seals · −5 to +70 °C on the moulded-cable version
- Versions
- Standard rotatable · rotatable with integrated LED and electrical protection · non-rotatable with moulded 3-conductor cable
- Serviceability
- Size 30 has a removable lid for checking the supply without unplugging or interrupting valve operation
Series Timers
Solenoid Valve Timers
Solid-state adjustable timers that cycle an ASCO solenoid valve automatically. The classic job: draining condensate from a compressed-air system without anyone remembering to do it. Available plain, with a DIN connector kit, or with a power cord.
Technical data
- Timing — on
- Selectable, 2 to 40 seconds
- Timing — off
- Selectable, 30 seconds to 45 minutes
- Override
- Manual override for test and reset
- Indication
- LED lights show the timing phase
- Enclosure
- Type 4
- Operating environment
- Indoor · outdoor · washdown
- Supply variants
- Plain · with DIN connector kit · with power cord
Need an ASCO™ solenoid valve accessorie?
Send us the catalog number, the port size and the service — we confirm the series, the coil and the body material, and quote it from our Orlando, FL warehouse.
