ASCO™ Fuel Shutoff Valves
On a fuel train the valve is not a control device, it is a safety device. These are the ones that close — certified as safety shut-off valves by UL, CSA and FM, with proof of closure when the code demands it.
Sizing a valve? Estimate flow, pressure drop or Cv/Kv with our free calculator.
Open the Flow Calculator →Fuel shutoff is the one duty where the paperwork is part of the product. A burner or boiler fuel train is inspected against code, and the inspector does not ask what the valve is made of — he asks which agency listed it, whether the closed position is electrically interlocked, and how the closure is proven. That is why every series below carries its approvals explicitly, and why we do not carry one series' certification over to another: the 040 and the S262, for example, publish UL and CSA but not FM.
The decisions that follow are about how the train has to behave. Proof of closure (043) sends back an electrical confirmation that the disc actually seated. Manual reset (044) refuses to reopen after a trip until a person goes and looks. A vent valve (S262) is normally open so leaking gas escapes instead of accumulating while the system is down — it complements the shutoff valve, it does not replace it. And flow decides size: from the compact 040 up to the 215 at Cv 130.
Select your valve
ASCO™ fuel shutoff valves we supply
Narrow the line by port size, media and voltage — then open the series for its full technical data. Every specification below comes from the manufacturer’s published data.
214
214 (8214) High-Flow Gas Shut Off Valves
High-flow, low-pressure gas safety shutoff for commercial and industrial burners. The double-disc over-travel design gives redundant leak-tight sealing on pilot or main gas lines.
- Cv 4.4 – 103
- UL · CSA · FM
- Type 4X coil
215
215 (8215) Aluminum Gas Shut Off Valves
Lightweight aluminium-body gas safety shutoff for high-flow service. The pilot-operated construction works from zero pressure differential, with resilient soft seating for tight shutoff.
- Cv 3.4 – 130
- Class I Div 1
- To 125 psi (8.6 bar)
040
040 (8040) Gas Safety Shut Off Valves
Compact gas safety shutoff for pilot or main control of commercial and industrial burners in generators, heating equipment and ovens.
- 1/8" – 1 1/4"
- UL · CSA
- Any mounting position
043
043 (8043) Gas Shut Off with Proof of Closure
Normally closed gas safety shutoff with a double-disc over-travel design, adding visual position indication and a proof-of-closure switch. Opens and closes in under a second.
- Proof of closure
- < 1 s response
- UL · CSA · FM
044
044 (8044) Manual Reset Gas Shut Off Valves
Manual-reset gas safety shutoff: it trips closed the instant the solenoid is de-energized and must be reset by hand — the free handle will not open it until the solenoid is energized again.
- Manual reset
- < 1 s trip
- UL · CSA · FM
S261
S261 Gas Shut Off Valve
Pilot-operated die-cast aluminium valve for on/off control of fuel gas in commercial and industrial burners, with high-pressure capability and a zero-differential piloted diaphragm.
- 3/8" – 3"
- < 1 s response
- UL/CSA · FM to 3/4"
S262
S262 Gas Vent Valve
Normally open fuel-gas vent valve: when the combustion system is off, any leaking gas vents through it instead of accumulating. The safety complement to the shutoff valve, not a substitute for it.
- Normally open
- Fast open < 1 s
- UL · CSA
No series match that combination.
Clear a filter — or tell us the duty and our application engineers will pick the valve.
Request a Quote →Series 214

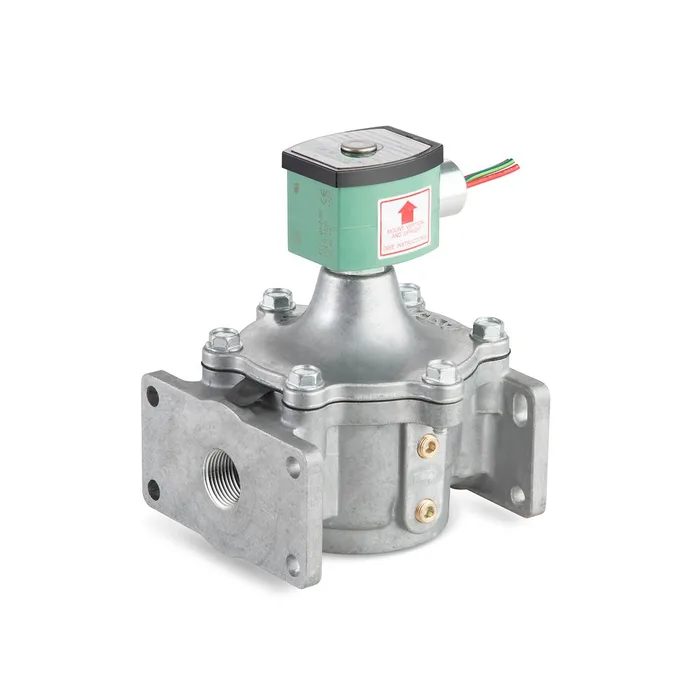

214 (8214) High-Flow Gas Shut Off Valves
High-flow, low-pressure gas safety shutoff for commercial and industrial burners. The double-disc over-travel design gives redundant leak-tight sealing on pilot or main gas lines.
Technical data
- Port size
- 1/4", 1/2", 3/4", 1", 2", 3" · NPT
- Function
- 2/2 normally closed · 2/2 normally open
- Body material
- Aluminum
- Operating pressure
- 5 – 50 psi
- Ambient temperature
- −40 °F to 140 °F
- Flow factor
- Cv 4.4 (Kv 3.7) to Cv 103 (Kv 88)
- Enclosure
- Type 4X coil enclosure — watertight and corrosion resistant, on all constructions
- Approvals
- Fully certified by UL, CSA and FM as a safety shut-off valve
- Interlock
- Proof-of-closure switch and visual indication meet agency and code requirements for electrical interlock of the closed position
- Testing
- 1/8" NPT pipe taps with plugs for routine testing
- Voltages
- 12/120/240 V DC · 24/110/120/220/230/240/480 V AC · 50/60 Hz
Series 215

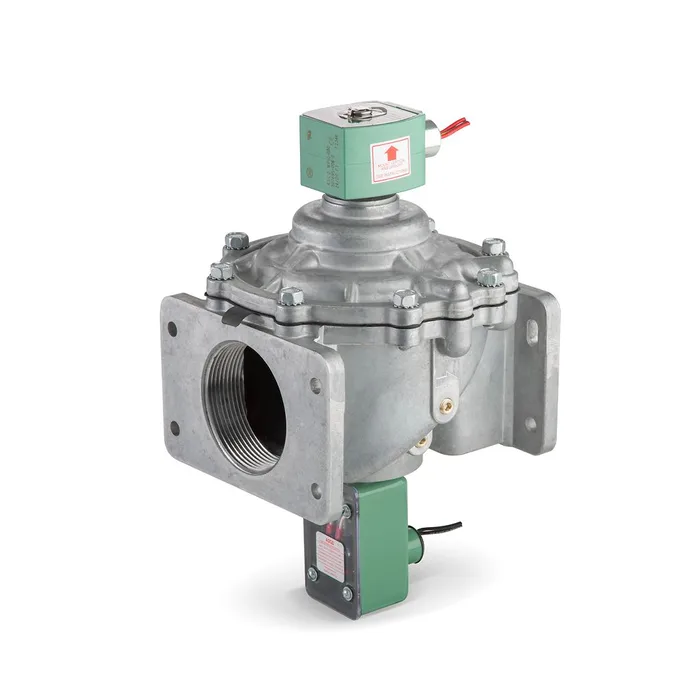

215 (8215) Aluminum Gas Shut Off Valves
Lightweight aluminium-body gas safety shutoff for high-flow service. The pilot-operated construction works from zero pressure differential, with resilient soft seating for tight shutoff.
Technical data
- Port size
- 3/8" – 3" · NPT
- Function
- 2/2 normally closed · 2/2 normally open
- Operation
- Pilot operated — works from zero pressure differential
- Body material
- Aluminum
- Operating pressure
- 125 psi (8.6 bar); vacuum constructions available
- Flow factor
- Cv 3.4 – 130 (Kv 2.9 – 110)
- Enclosure
- Types 1, 2, 3, 3R, 3S, 4, 4X, 6, 6P, 7, 9 · coils certified for explosion-proof and hazardous locations
- Hazardous area
- Class I Div 1 and 2 · Class II Div 1 and 2
- Approvals
- Fully certified by UL, CSA and FM as a safety shut-off valve
- Options
- Oxygen and vacuum service constructions · high-flow option on 1 1/4", 1 1/2" and 2"
Series 040

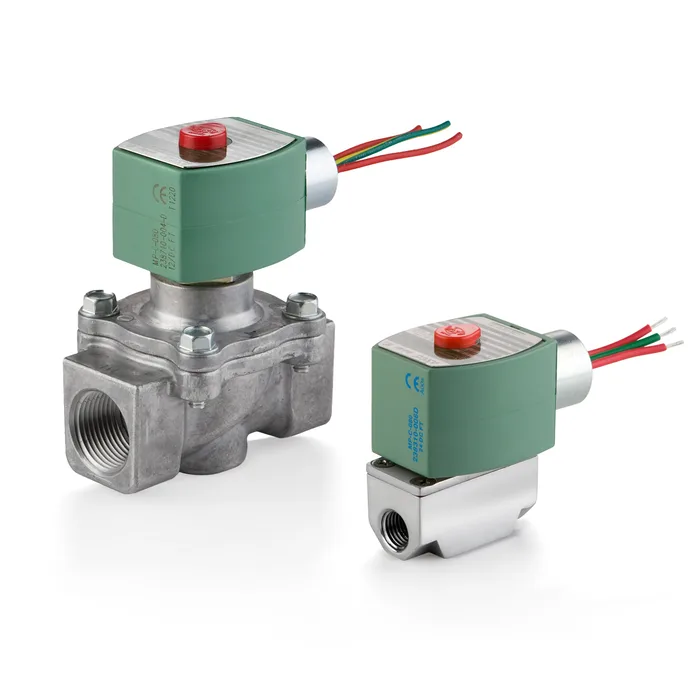

040 (8040) Gas Safety Shut Off Valves
Compact gas safety shutoff for pilot or main control of commercial and industrial burners in generators, heating equipment and ovens.
Technical data
- Port size
- 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4" · NPTF
- Function
- 2/2 normally closed
- Body material
- Aluminum
- Operating pressure
- Vacuum to 150 psig
- Flow factor (Cv)
- From 2.0 to over 14.0
- Enclosure
- Types 1, 2, 3, 3R, 3S, 4, 4X, 6, 6P, 7, 9
- Hazardous area
- Class I Div 1 and 2 · Class II Div 1 and 2
- Approvals
- CSA · UL (FM is not listed for this series)
- Mounting
- Any position
Series 043

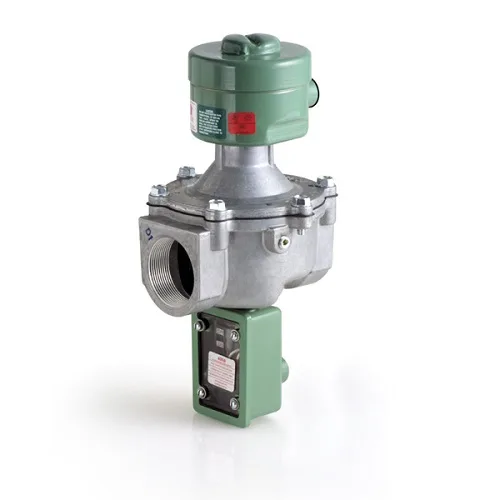

043 (8043) Gas Shut Off with Proof of Closure
Normally closed gas safety shutoff with a double-disc over-travel design, adding visual position indication and a proof-of-closure switch. Opens and closes in under a second.
Technical data
- Port size
- 3/4" – 3" · NPTF
- Function
- 2/2 normally closed
- Operation
- Solenoid, zero-differential piloted diaphragm
- Body material
- Aluminum
- Operating pressure
- Vacuum to 150 psig
- Flow factor (Cv)
- From 2.0 to over 14.0
- Response time
- Opening and closing under 1 second
- Proof of closure
- Switch rated at 1 amp · visual indication of open and shut position
- Closing force
- 5-pound closing spring
- Enclosure
- Types 1 and 4
- Approvals
- CSA · FM · UL
Series 044

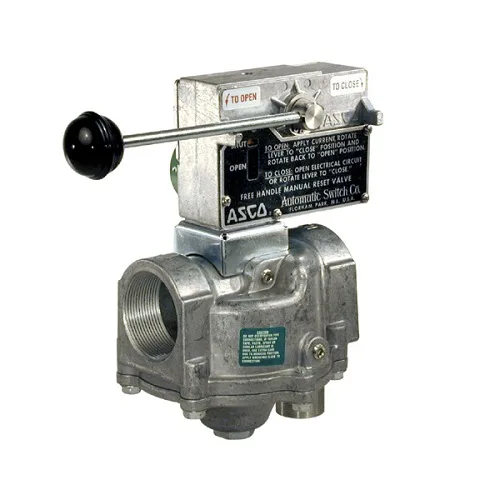

044 (8044) Manual Reset Gas Shut Off Valves
Manual-reset gas safety shutoff: it trips closed the instant the solenoid is de-energized and must be reset by hand — the free handle will not open it until the solenoid is energized again.
Technical data
- Port size
- 3/4" – 3" · NPTF
- Function
- 2/2 normally closed, manual reset
- Body material
- Aluminum
- Operating pressure
- Vacuum to 150 psig
- Flow factor (Cv)
- From 2.0 to over 14.0
- Response time
- Under 1 second
- Safety interlock
- Free handle will not open the valve until the solenoid is energized
- Indication
- Highly visible position indicator standard
- Enclosure
- Type 1
- Approvals
- UL listed · FM approved · CSA certified
Series S261

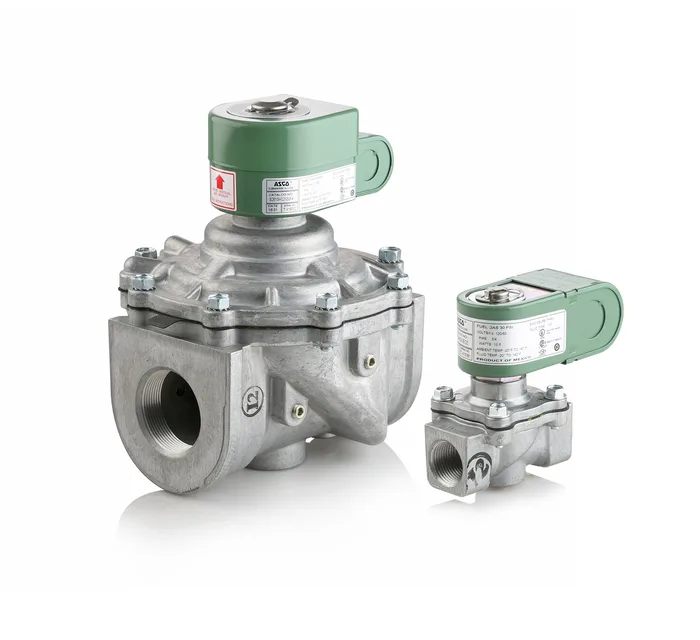

S261 Gas Shut Off Valve
Pilot-operated die-cast aluminium valve for on/off control of fuel gas in commercial and industrial burners, with high-pressure capability and a zero-differential piloted diaphragm.
Technical data
- Port size
- 3/8" – 3" · NPTF
- Operation
- Solenoid, pilot operated — zero-differential piloted diaphragm
- Body material
- Die-cast aluminum
- Operating pressure
- Vacuum to 150 psig
- Ambient temperature
- Up to 175 °F
- Response time
- Opening and closing under 1 second
- Approvals
- All models UL/CSA rated · FM rating on 3/8" to 3/4" sizes
- Testing
- 1/8" NPT upstream and downstream pipe taps with plugs
Series S262
S262 Gas Vent Valve
Normally open fuel-gas vent valve: when the combustion system is off, any leaking gas vents through it instead of accumulating. The safety complement to the shutoff valve, not a substitute for it.
Technical data
- Port size
- 3/8" – 3" · NPTF
- Function
- 2/2 normally open
- Operation
- Solenoid, zero-differential piloted diaphragm
- Body material
- Die-cast aluminum
- Operating pressure
- Vacuum to 150 psig
- Ambient temperature
- Up to 175 °F
- Response time
- Fast opening, under 1 second
- Enclosure
- Type 1
- Approvals
- CSA · UL (FM is not listed for this series)
Series SV311

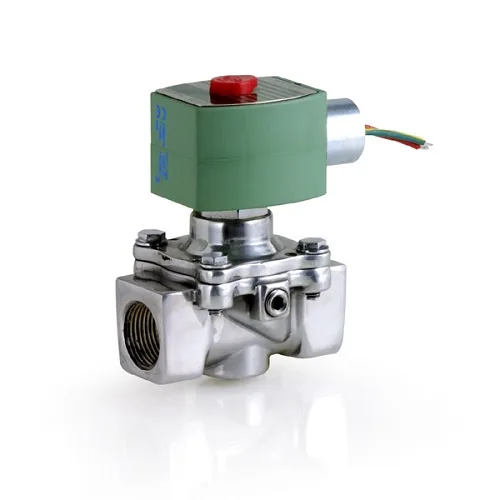

SV311 Gas Shutoff Valve
Small direct-lift gas safety shutoff with resilient soft seating for tight shutoff, for commercial and industrial burners in generators, heating equipment and ovens.
Technical data
- Port size
- 1/8", 1/4", 3/8" · NPTF
- Function
- 2/2 normally closed
- Operation
- Solenoid, direct lift
- Body material
- Aluminum
- Operating pressure
- 150 – 500 psig
- Ambient temperature
- Up to 175 °F
- Response time
- Opening and closing under 1 second
- Enclosure
- Types 1, 2, 3, 3S, 4, 4X
- Approvals
- CSA · FM · UL
- Mounting
- Any position
Series 030

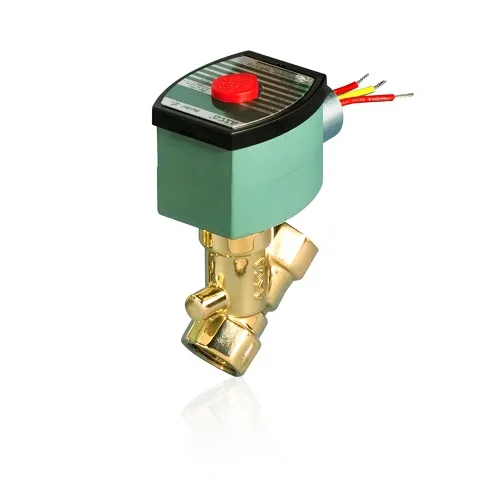

030 (8030) Low-Pressure Solenoid Valves
Direct-acting low-pressure valve rated to 15 psi (1 bar) maximum differential. Brass constructions serve fuel gas: normally closed for shutoff, normally open for venting.
Technical data
- Port size
- 3/8", 1/2", 3/4" · NPTF
- Function
- 2/2 normally closed · 2/2 normally open
- Operation
- Solenoid, direct acting
- Body material
- Brass · stainless steel
- Operating pressure
- Up to 15 psi (1 bar) maximum differential
- Flow factor (Cv)
- From 2.0 to 14.0
- Approvals
- CSA · FM · UL
- Mounting
- Most constructions mountable in any position
Need an ASCO™ fuel shutoff valve?
Send us the catalog number, the port size and the service — we confirm the series, the coil and the body material, and quote it from our Orlando, FL warehouse.
